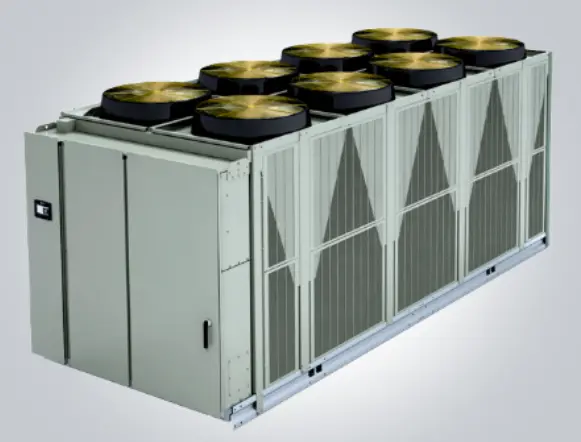

TRANE RTAF-200 used chiller: 200 tons at ARI, 120°F max ambient. Operates 0°F-120°F with 5°F min temp. Flow rate 480 gpm at 100 feet head, max 1000 gpm. Power: 460V, MCA 500A, MOP 600A. Efficient for diverse industrial needs.

200 Tons at ARI Conditions at 120° F Ambient Temp.
Operating temperature Range 0F to 120F
Coldest Temperature Leaving 5° F
Flow Rate: 480 Gallons/ Minute at 100 Feet of Head
Max flow rate 1000 gpm & Min flow rate 78 gpm
460 Volts
MCA Minimum Circuit Ampacity 500 Amps
MOP is 600 Amps

Included in all Rentals

Chiller Rides on air ride Trailer with on board Work Lights & 120 Volt Outlets
Integral Pre-Piped & Wired Chilled Water Pump and starter
Right Angle Suction Diffuser/Strainer
Cross Connected Gauges on Pump & Evaporator
BTU/TON Meter
6" Flange Piping Connections with Lug Isolation Valves
On Board skid with Air Separator, Vent Relief Valve & Bladder Type Expansion Tank
